Looking for a heating element to support an HVAC system? This guide highlights five practical options that fit common residential and light commercial setups. Each pick is aimed at different buyer needs—from compact replacements to robust, OEM-grade parts. Whether you’re upgrading an electric heater, replacing a failed component, or adding a supplemental heating source, these choices help you compare performance, compatibility, and ease of use. The list emphasizes clear use cases to help you decide quickly.
Buyer types in mind: homeowners seeking DIY-compatible parts, technicians needing dependable OEM replacements, and builders requiring compact elements for integrated heating modules. A quick summary table below outlines the core specs and best-fit scenarios to help you skim for fast decisions.
| Product | Brand | Best For | Key Benefit |
|---|---|---|---|
| Ceramic Air Heater 1500W | Fafeicy | DIY HVAC upgrades, small-to-medium units | High heat transfer efficiency with ceramic and aluminum tube |
| Square D B40 Heating Element | Square D | OEM replacement in panel or control cabinets | Trusted brand with compatible B-40 rating |
| Audel HVAC Fundamentals (Book) | Audel | Reference for technicians and students | Foundational knowledge on heating systems and controls |
| STEGO 50W Heating Element | STEGO | DIN rail mounted control panels | Compact 50W, touch-safe, wide voltage range |
| Bestol PTC Heating Element (2 pcs) | Bestol | Low-voltage or modular heating needs | Constant-temperature surface with fast response |
Ceramic Air Heater 1500W Electric Heater for HVAC Systems
The Fafeicy Ceramic Air Heater uses ceramic heating elements and an aluminum tube design to deliver high heat transfer efficiency. It operates at 1500W and is mounted via a 120×145 mm hole pattern, making it suitable for retrofit into air handlers, air curtains, and compact HVAC modules. Best for technicians or do-it-yourselfers who need a robust, compact heater element with fast warmth delivery.
Best for: DIY replacements in small to medium HVAC units where high heat output is beneficial. Better for: installations that require a durable ceramic element and a straightforward mounting footprint. Choose this if: you need quick warmth with good heat transfer characteristics. Caution: verify mounting alignment and electrical wiring clearances before installation.
SQUARE D B40 Heating Element
The Square D B40 is a standard replacement thermal overload heater element designed for electrical panels and control gear. It carries an amp rating around 21.8–24.2 AMPS, making it suitable for higher-demand safety and protection roles within HVAC control circuits. Best for: professionals seeking OEM-grade replacement parts to maintain original performance and compatibility. Better for: installations where a precise amp rating and Square D compatibility matter. Caution: confirm the exact panel rating to avoid overload conditions.
Audel HVAC Fundamentals, Volume 2
Audel HVAC Fundamentals Volume 2 covers heating system components, gas and oil burners, and automatic controls. This reference is best for students, technicians, and professionals who want a solid theoretical grounding to support installation decisions and troubleshooting. Best for: learners and professionals who need a reliable technical reference. Caution: it is a knowledge source rather than a replacement part for equipment repair.
STEGO 50W Heating Element
The STEGO 50W heating element is designed for DIN rail mounting in control panels and electrical enclosures. Its 120–240 VAC/VDC operating range supports a flexible range of industrial HVAC control environments. Best for: compact control cabinets needing a touch-safe, low-wattage heater. Better for: situations where a DIN rail-mounted, safe-temperature element is required. Caution: verify the exact voltage and wattage fit for your enclosure to avoid overloading the rail space.

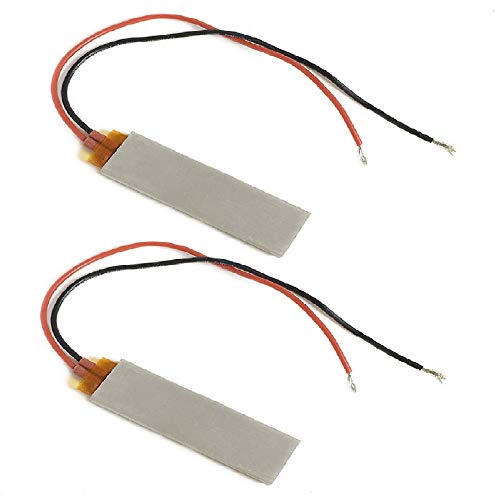

Bestol 2pcs PTC Heating Element
The Bestol PTC heating elements come in a 2-pack and operate with constant surface temperatures due to PTC behavior. They support 48V input and have a robust operation with quick heat-up. Best for: modular heating points in compact HVAC modules or 12V–48V systems. Better for: applications requiring stable surface temperature with rapid response. Caution: check voltage compatibility with your control circuits to prevent mismatch.
Buying Guide
What should you consider when selecting a heating element for HVAC systems?
- Voltage and wattage: Ensure the element’s operating voltage and wattage match your system specifications to avoid electrical issues.
- Mounting and form factor: Confirm hole patterns, DIN rail compatibility, or enclosure space to ensure a proper fit.
- Material and safety: Ceramic and PTC elements offer different heat transfer and self-regulation traits. Look for touch-safe designs where applicable.
- Application scope: OEM replacements benefit from guaranteed compatibility, while aftermarket parts may require more verification.
- Thermal behavior: Some elements provide constant-temperature surfaces; others deliver rapid but brief heat bursts. Pick based on your climate control needs.
- Maintenance and availability: OEM parts may be easier to source long-term; consider lead times and warranty concepts if relevant.
How to compare options quickly
- Best for DIY upgrades: Ceramic air heaters with clear mounting footprints and straightforward wiring.
- Best for OEM replacements: Brand-aligned elements like Square D B40 for established systems.
- Best for compact control panels: DIN-rail mounted or small 50W elements from STEGO.
- Best for learning and reference: Technical books that explain heating system components and controls.
- Best for modular heating: PTC elements that offer self-regulating, steady temperatures.
Frequently asked questions
- What is a heating element in HVAC systems? A heating element converts electrical energy into heat to warm air or surfaces within HVAC equipment.
- Do I need OEM parts for replacement? OEM parts ensure exact fit and compatibility with the original equipment, reducing installation risk.
- Can PTC elements be used in all HVAC applications? PTC elements provide self-regulated heating but may not be suitable for all high-temperature or high-wattage needs.
- Is DIN rail mounting common for heating elements? Yes, DIN rail mounting is common in control panels for compact, organized installations.
- What should I verify before buying? Check voltage, wattage, mounting footprint, and compatibility with your control circuitry.
- Are these elements safe for high-temperature environments? Look for models with safety features and temperature ratings appropriate to your system.
