When selecting a gas boiler relay switch, the goal is to ensure safe, dependable control of the boiler’s ignition and burner operation via low-voltage signals. The top picks below are suitable for residential or small commercial setups, and are best for technicians or informed homeowners upgrading an aging control circuit. These relays are designed to interface with low-voltage thermostats and high-voltage boiler loads, helping you improve heat delivery and system stability. The quick reference table highlights each product’s core purpose and ideal user.
| Product | Best For | Key Benefit |
|---|---|---|
| OONO F-1067 | Boiler systems needing built-in 24V transformer | Direct thermostat control with built-in transformer |
| SZRKRLA 2 Pack | Multiple zones or spare relays in HVAC | Wide compatibility and robust construction |
| Dreyoo 2 Pack 24V | Single-zone or multiple-zone fan/boiler control | UL-like protection and broad compatibility |
| VWMJQSIJEK Boiler Switches | Bulk replacement for gas boiler controls | Universal 10-pack option for large installs |
| ICM283 Gas Ignition Control | Low-cost ignition control replacements | Simple, dependable ignition management |
OONO F-1067 With Built-In 24V Transformer
The AC208-240V On/Off Switching Electric Heating Relay with a built-in 24V transformer is designed to drive a 240V boiler load from a low-voltage thermostat. It is compatible with 3-wire (R, C, W) or 2-wire (R, W) thermostats, making it flexible for older or newer boiler installations. An LED indicator shows relay activity for quick troubleshooting. Best for homeowners or technicians replacing a failed boiler relay while preserving thermostat wiring. Caution: confirm transformer threading and terminal spacing match your existing setup to avoid wiring conflicts.
SZRKRLA 2 Pack 24V Fan Relay
This 2-pack SPST isolation relay set is designed to control fans and related components in HVAC systems, including gas furnaces. It’s best for upgrading or expanding control schemes with reliable 24V actuation. The relays are built for durability and resistance to wear, with a focus on stability in demanding environments. Choose this if you need affordable backups or multi-zone control. Limitation: verify your wiring harness compatibility and load rating before installation.
Dreyoo 2 Pack 24V Fan Relay
The 90-980 isolation relays operate on 24VAC and provide one-pole SPST switching, suitable for Goodman blowers, HVAC, and gas furnaces. They emphasize circuit protection and broad compatibility with heating equipment. Best for technicians who need a cost-effective replacement for aging relays in gas-fired systems. Caution: UL certification claims are not explicit in listing; ensure local codes allow this specific model for your boiler setup.

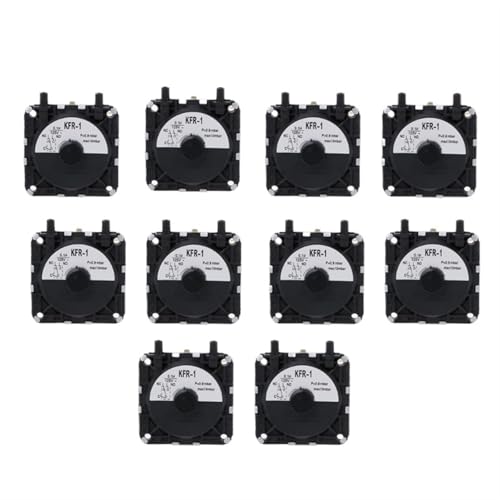

VWMJQSIJEK 10 Pcs Boiler Gas Water Heater Switch
This set provides 10 universal pressure switches for boiler gas and water heater applications. It’s best for bulk replacements or stocking up for field service operations. Each switch is designed to work with KFR-1 style boiler configurations, supporting quick swaps in maintenance scenarios. Limitation: verify that the switch type matches the exact pressure range used by your boiler to avoid improper operation.
ICM Controls ICM283 Gas Ignition Control
The ICM283 gas ignition control offers a low-cost replacement option for Honeywell, Roberts/Haw, and White-Rodgers systems. It supports single or dual-rod sensing and is intended for gas-fired furnaces, boilers, and other heating appliances. Best for budget-conscious replacements where a straightforward ignition control is needed. Caution: confirm compatibility with your existing ignition assembly and sequencing before installation to avoid improper ignition timing.
Buying Guide
What type of boiler relay should I use?
Choose relays with the correct coil voltage (commonly 24V for thermostats) and the appropriate contact rating for your boiler load. Built-in transformers simplify wiring in some models, while separate transformer setups can offer flexibility in multi-zone systems.
What load and voltage ratings are important?
Ensure the relay can handle your boiler’s amp draw and the high inrush that occurs during ignition. For gas boilers, select relays rated for resistive loads at 120–240V and verify any leakage current requirements in your installation guidelines.
Is isolation important?
Isolation relays separate control circuits from high-voltage boiler circuits, reducing risk and improving control accuracy. They are especially helpful in retrofit projects or when integrating multiple control devices like humidifiers or blowers.
What about compatibility with thermostats?
Relays should support common thermostat configurations (2-wire or 3-wire with R, W, and possibly C). The ability to power a thermostat from the relay’s built-in transformer can simplify wiring in retrofit jobs.
How many relays do I need?
For single-zone boilers, one relay that matches the load is typically sufficient. For multi-zone or multi-appliance setups, plan additional relays to support each controlled device, ensuring each has proper heat sequencing.
What are practical safety considerations?
Follow local electrical codes for wiring and mounting. Use relays with clearly visible power indicators and ensure secure mounting near the boiler control box. If in doubt, consult a licensed technician to avoid wiring mistakes that could affect safety or performance.
FAQ
- Q: Do these relays require a separate power supply?
A: Some include a built-in 24V transformer; others require a transformer from the control circuit. Check each model’s wiring diagram. - Q: Can I replace a boiler ignition control with a general-purpose relay?
A: Replacement depends on load and wiring compatibility. Use models designed for gas ignition control replacement when possible. - Q: Are these relays suitable for high-efficiency boilers?
- A: They are designed for standard gas boiler control circuits; verify load ratings and sequencing with your boiler model.
- Q: What is the advantage of an isolation relay?
A: Isolation relays protect control circuits from high-voltage transients and improve reliability in mixed-control environments. - Q: How do I determine the correct coil voltage?
